第二章 Kubernetes进阶之使用二进制包部署集群

平台框架 0 375

小小草 2020年8月15日 12:02 发表

摘要：　1.官方提供的三种部署方式　　minikube 　　Minikube是一个工具，可以在本地快速运行一个单点Kubernetes，仅用于尝试Kubernetes或日常开发以后使用

　1.官方提供的三种部署方式

　　minikube

　　Minikube是一个工具，可以在本地快速运行一个单点Kubernetes，仅用于尝试Kubernetes或日常开发以后使用

　　kubeadm

　　Kubeadm也是一个工具，提供kubeadm init和kubeadm join，用于快速部署Kubernetes集群

　　init初始化master

　　join使node加入集群

　　目前属于测试阶段不适用于生产环境

　　二进制包

　　推荐部署方式，从官方下载发行版的二进制包，手动部署每个组件，组成Kubernetes集群

　　2.Kubernetes平台环境规划

软件	版本
Linux操作系统	CentOS7.5_X64
Kubbernetes	1.12
Docker	18.xx.ce
Etcd	3.x
Flannel	0.10

角色	IP	组件	推荐配置
master01	192.168.1.63	kube-apiserver kube-controller-manager kube-scheduler etcd	CPU：2C+ 内存：4G+
master02	192.168.1.64	kube-apiserver kube-controller-manager kube-scheduler
node01	192.168.1.65	kubelet kube-proxy docker flannel etcd
node02	192.168.1.66	kubelet kube-proxy docker flannel etcd
Load Balancer （Master）	192.168.1.61 192.168.1.60（VIP）	Nginx L4
Load Balancer （Backup）	192.168.1.62	Nginx L4
Registry	192.168.1.66	Harbor

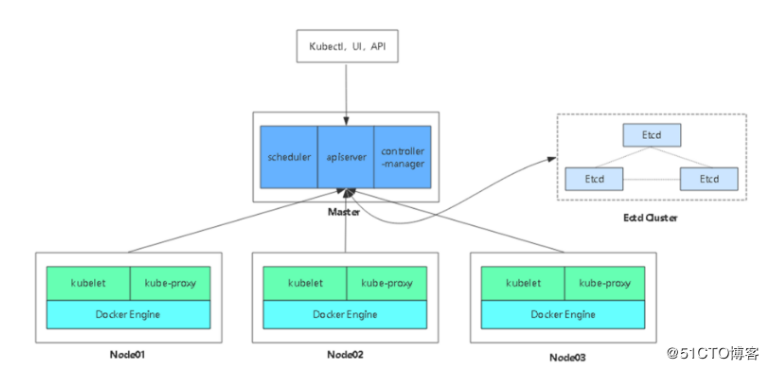

　　单节点master构架图

　　3.自签SSL证书

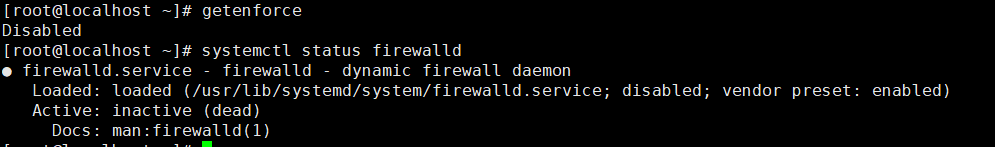

　　部署之前关闭防火墙和selinux

　　修改主机名

IP	主机名
192.168.1.61
192.168.1.62
192.168.1.63	k8s-master01
192.168.1.64	k8s-master02
192.168.1.65	k8s-node01
192.168.1.66	k8s-node02

　　自签SSL证书

组件	适用的证书
etcd	ca.pem server.pem server-key.pem
flannel	ca.pem server.pem server-key.pem
kube-apiserver	ca.pem server.pem server-key.pem
kubelet	ca.pem ca-key.pem
kube-proxy	ca.pem kube-proxy.pem kube-proxy.pem
kubeclt	ca.pem admin.pem admin-key.pem

　　4.Etcd数据库集群部署

　　下载cfssl工具

wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64

wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64

wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64

chmod +x cfssl_linux-amd64 cfssljson_linux-amd64 cfssl-certinfo_linux-amd64

mv cfssl_linux-amd64 /usr/local/bin/cfssl

mv cfssljson_linux-amd64 /usr/local/bin/cfssljson

mv cfssl-certinfo_linux-amd64 /usr/bin/cfssl-certinfo

　　生产json文件

cat > ca-config.json <<EOF

{

"signing": {

"default": {

"expiry": "87600h"

},

"profiles": {

"www": {

"expiry": "87600h",

"usages": [

"signing",

"key encipherment",

"server auth",

"client auth"

]

}

EOF

cat > ca-csr.json <<EOF

{

"CN": "etcd CA",

"key": {

"algo": "rsa",

"size": 2048

},

"names": [

{

"C": "CN",

"L": "Beijing",

"ST": "Beijing"

}

]

}

EOF

　　生产ca证书

1	`cfssl gencert` `-initca ca-csr.json \| cfssljson` `-bare ca` `-`

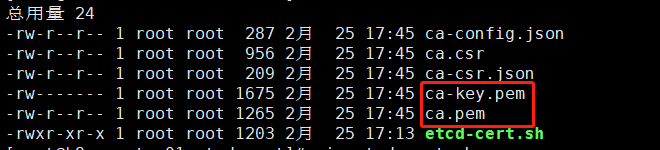

　　会在当前目录生成一下两个证书

　　生成etcd域名证书，没有域名使用IP代替这里部署etcd的三台服务器的IP分别为192.168.1.63 192.168.1.65 192.168.1.66

cat > server-csr.json <<EOF

{

"CN": "etcd",

"hosts": [

"192.168.1.63",

"192.168.1.65",

"192.168.1.66"

],

"key": {

"algo": "rsa",

"size": 2048

},

"names": [

{

"C": "CN",

"L": "BeiJing",

"ST": "BeiJing"

}

]

}

EOF

　　生成证书

1	`cfssl gencert` `-ca=ca.pem` `-ca-key=ca-key.pem` `-config=ca-config.json` `-profile=www server-csr.json \| cfssljson` `-bare server`

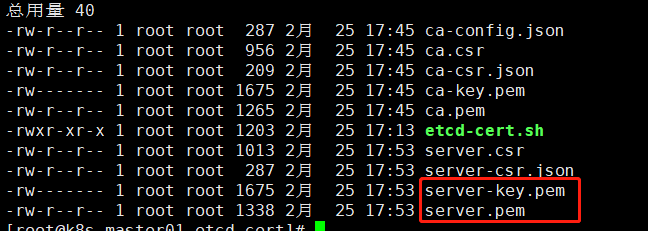

　　生成以下两个证书

　　两次生成证书的命令生成以下证书

　　部署etcd

　　以下操作在etcd的三个节点63 65 66均执行一遍，三个节点不同的地方是配置文件的ip不同

　　下载二进制包，下载地址是https://github.com/etcd-io/etcd/releases/tag/

　　本次部署下载包为etcd-v3.3.10-linux-amd64.tar.gz

　　创建etcd执行文件配置文件及ssl证书目录

1	`mkdir` `/opt/etcd/{bin,cfg,ssl}` `-p`

　　解压压缩包

1	`tar` `-xf etcd-v3.3.10-linux-amd64.tar.gz`

　　复制可执行文件

1	`cp etcd-v3.3.10-linux-amd64/etcd etcd-v3.3.10-linux-amd64/etcdctl` `/opt/etcd/bin/`

　　创建etcd配置文件

1	`/opt/etcd/cfg/etcd`

　　内容如下

# cat /opt/etcd/cfg/etcd

#[Member]

ETCD_NAME="etcd01"

ETCD_DATA_DIR="/var/lib/etcd/default.etcd"

ETCD_LISTEN_PEER_URLS="https://192.168.1.63:2380"

ETCD_LISTEN_CLIENT_URLS="https://192.168.1.63:2379"

#[Clustering]

ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.1.63:2380"

ETCD_ADVERTISE_CLIENT_URLS="https://192.168.1.63:2379"

ETCD_INITIAL_CLUSTER="etcd01=https://192.168.1.63:2380,etcd02=https://192.168.1.65:2380,etcd03=https://192.168.1.66:2380"

ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"

ETCD_INITIAL_CLUSTER_STATE="new"

　　变量说明

ETCD_NAME 节点名称

ETCD_DATA_DIR 数据目录

ETCD_LISTEN_PEER_URLS 集群通信监听地址

ETCD_LISTEN_CLIENT_URLS 客户端访问监听地址

ETCD_INITIAL_ADVERTISE_PEER_URLS 集群通告地址

ETCD_ADVERTISE_CLIENT_URLS 客户端通告地址

ETCD_INITIAL_CLUSTER 集群节点地址

ETCD_INITIAL_CLUSTER_TOKEN 集群Token

ETCD_INITIAL_CLUSTER_STATE 加入集群的当前状态，new是新集群，existing表示加入已有集群

　　创建systemd管理etcd文件

1	`/usr/lib/systemd/system/etcd.service`

　　内容如下

[Unit]

Description=Etcd Server

After=network.target

After=network-online.target

Wants=network-online.target

[Service]

Type=notify

EnvironmentFile=/opt/etcd/cfg/etcd

ExecStart=/opt/etcd/bin/etcd \

--name=${ETCD_NAME} \

--data-dir=${ETCD_DATA_DIR} \

--listen-peer-urls=${ETCD_LISTEN_PEER_URLS} \

--listen-client-urls=${ETCD_LISTEN_CLIENT_URLS},http://127.0.0.1:2379 \

--advertise-client-urls=${ETCD_ADVERTISE_CLIENT_URLS} \

--initial-advertise-peer-urls=${ETCD_INITIAL_ADVERTISE_PEER_URLS} \

--initial-cluster=${ETCD_INITIAL_CLUSTER} \

--initial-cluster-token=${ETCD_INITIAL_CLUSTER_TOKEN} \

--initial-cluster-state=new \

--cert-file=/opt/etcd/ssl/server.pem \

--key-file=/opt/etcd/ssl/server-key.pem \

--peer-cert-file=/opt/etcd/ssl/server.pem \

--peer-key-file=/opt/etcd/ssl/server-key.pem \

--trusted-ca-file=/opt/etcd/ssl/ca.pem \

--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem

Restart=on-failure

LimitNOFILE=65536

　　把证书拷贝至配置文件中的证书位置

1	`cp` `*.pem` `/opt/etcd/ssl/`

　　可以在第一个节点192.168.1.63配置好后使用scp命令把文件夹及文件拷贝至另外两台etcd服务器192.168.1.65 192.168.1.66

scp -r /opt/etcd/ root@192.168.1.65:/opt/

scp -r /opt/etcd/ root@192.168.1.66:/opt/

scp /usr/lib/systemd/system/etcd.service root@192.168.1.65:/usr/lib/systemd/system

scp /usr/lib/systemd/system/etcd.service root@192.168.1.66:/usr/lib/systemd/system

　　192.168.1.65 192.168.1.66其他文件不变，只修改配置文件

1	`/opt/etcd/cfg/etcd`

　　192.168.1.65

# cat /opt/etcd/cfg/etcd

#[Member]

ETCD_NAME="etcd02"

ETCD_DATA_DIR="/var/lib/etcd/default.etcd"

ETCD_LISTEN_PEER_URLS="https://192.168.1.65:2380"

ETCD_LISTEN_CLIENT_URLS="https://192.168.1.65:2379"

#[Clustering]

ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.1.65:2380"

ETCD_ADVERTISE_CLIENT_URLS="https://192.168.1.65:2379"

ETCD_INITIAL_CLUSTER="etcd01=https://192.168.1.63:2380,etcd02=https://192.168.1.65:2380,etcd03=https://192.168.1.66:2380"

ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"

ETCD_INITIAL_CLUSTER_STATE="new"

　　192.168.1.66

# cat /opt/etcd/cfg/etcd

#[Member]

ETCD_NAME="etcd03"

ETCD_DATA_DIR="/var/lib/etcd/default.etcd"

ETCD_LISTEN_PEER_URLS="https://192.168.1.66:2380"

ETCD_LISTEN_CLIENT_URLS="https://192.168.1.66:2379"

#[Clustering]

ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.1.66:2380"

ETCD_ADVERTISE_CLIENT_URLS="https://192.168.1.66:2379"

ETCD_INITIAL_CLUSTER="etcd01=https://192.168.1.63:2380,etcd02=https://192.168.1.65:2380,etcd03=https://192.168.1.66:2380"

ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"

ETCD_INITIAL_CLUSTER_STATE="new"

　　部署完etcd启动并设置开机自启动，三台etcd主机都操作

systemctl daemon-reload

systemctl start etcd

systemctl enable etcd

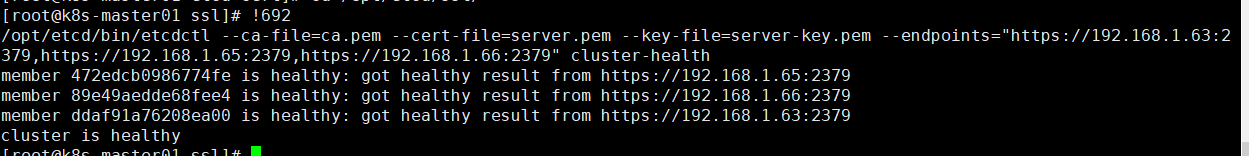

　　启动完以后检查etcd集群状态，因为是自建证书需要指定证书路径进行检查

1 2	`cd` `/opt/etcd/ssl/` `/opt/etcd/bin/etcdctl` `--ca-file=ca.pem` `--cert-file=server.pem` `--key-file=server-key.pem` `--endpoints="https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379"` `cluster-health`

　　出现以下提示代表etcd正常

member 472edcb0986774fe is healthy: got healthy result from https://192.168.1.65:2379

member 89e49aedde68fee4 is healthy: got healthy result from https://192.168.1.66:2379

member ddaf91a76208ea00 is healthy: got healthy result from https://192.168.1.63:2379

　　如果启动失败查看日志/var/log/message

　　拍错

　　如果日出现提示

1	`has already been bootstrapped`

　　删除etcd数据目录文件夹并新建再重启etcd

1 2	`rm` `-rf` `/var/lib/etcd/` `mkdir` `/var/lib/etcd`

　　5.Node安装Docker

　　在node安装docker，使用国内阿里源安装，安装参考https://developer.aliyun.com/mirror/docker-ce?spm=a2c6h.13651102.0.0.3e221b117i6d6B

# step 1: 安装必要的一些系统工具

sudo yum install -y yum-utils device-mapper-persistent-data lvm2

# Step 2: 添加软件源信息

sudo yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

# Step 3: 更新并安装Docker-CE

sudo yum makecache fast

sudo yum -y install docker-ce

# Step 4: 开启Docker服务

sudo service docker start

# Step 5：设置开机启动

systemctl enable docker

　　6.Flannel容器集群网络部署

　　Kubernetes网络模型设计基本要求

一个pod一个IP
每个Pod独立IP
所有容器都可以与其他容器通信
所有节点都可以与所有容器通信

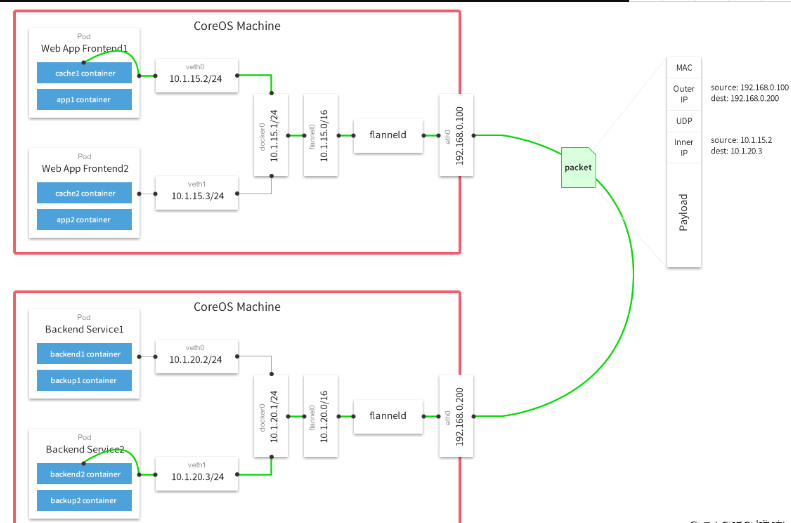

　　flannel工作原理图

　　Overlay Network

　　覆盖网络，在基础网络上叠加一种虚拟网络技术模式，该网络中的主机通过虚拟链路连接起来。

　　Flannel是Overlay网络的一种，也是将源数据包封装在另一种网络包里进行路由转发和通信，目前支持UDP，VXLAN，Host-GW，AWS VPC和GCE路由等数据转发方式。

　　Falnnel要用etcd存储一个子网信息，所以要保证能成功连接etcd，写入预定义子网段

　　在master01 192.168.1.63上操作

#进入证书目录

cd /opt/etcd/ssl

#设置

/opt/etcd/bin/etcdctl --ca-file=ca.pem --cert-file=server.pem --key-file=server-key.pem --endpoints="https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379" set /coreos.com/network/config '{ "Network": "172.17.0.0/16", "Backend": {"Type": "vxlan"}}'

　　出现以下提示代表设置正常设置以后创建docker容器的网段即为172.17.0.0/16

　　把以上命名的set改成get就能获取到设置信息

1	`/opt/etcd/bin/etcdctl` `--ca-file=ca.pem` `--cert-file=server.pem` `--key-file=server-key.pem` `--endpoints="https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379"` `get` `/coreos.com/network/config` `'{ "Network": "172.17.0.0/16", "Backend": {"Type": "vxlan"}}'`

　　以下配置在node节点192.168.1.65 192.168.1.66配置

　　下载二进制包

wget https://github.com/coreos/flannel/releases/download/v0.10.0/flannel-v0.10.0-linux-amd64.tar.gz

#解压

tar -xf flannel-v0.11.0-linux-amd64.tar.gz

#创建Kubernetes目录

mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}

#把解压后的flanneld文件复制到对应目录

cp flanneld mk-docker-opts.sh /opt/kubernetes/bin

　　配置flannel配置文件

1	`/opt/kubernetes/cfg/flanneld`

　　内容如下

1	`FLANNEL_OPTIONS="--etcd-endpoints=https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379 -etcd-cafile=/opt/etcd/ssl/ca.pem -etcd-certfile=/opt/etcd/ssl/server.pem -etcd-keyfile=/opt/etcd/ssl/server-key.pem"`

　　需要把etcd对应的证书拷贝到这个配置文件指定的目录opt/etcd/ssl下

　　配置system管理flanneld

1	`/usr/lib/systemd/system/flanneld.service`

　　内容如下

# cat /usr/lib/systemd/system/flanneld.service

[Unit]

Description=Flanneld overlay address etcd agent

After=network-online.target network.target

Before=docker.service

[Service]

Type=notify

EnvironmentFile=/opt/kubernetes/cfg/flanneld

ExecStart=/opt/kubernetes/bin/flanneld --ip-masq $FLANNEL_OPTIONS

ExecStartPost=/opt/kubernetes/bin/mk-docker-opts.sh -k DOCKER_NETWORK_OPTIONS -d /run/flannel/subnet.env

Restart=on-failure

[Install]

WantedBy=multi-user.target

　　启动flanneld以后可以查看文件/run/flannel/subnet.env查看子网信息

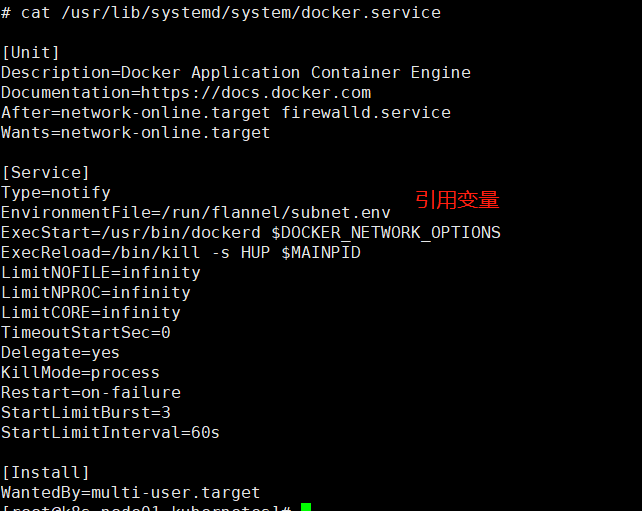

　　配置docker使用子网信息

1	`/usr/lib/systemd/system/docker.service`

　　内容如下

# cat /usr/lib/systemd/system/docker.service

[Unit]

Description=Docker Application Container Engine

Documentation=https://docs.docker.com

After=network-online.target firewalld.service

Wants=network-online.target

[Service]

Type=notify

EnvironmentFile=/run/flannel/subnet.env

ExecStart=/usr/bin/dockerd $DOCKER_NETWORK_OPTIONS

ExecReload=/bin/kill -s HUP $MAINPID

LimitNOFILE=infinity

LimitNPROC=infinity

LimitCORE=infinity

TimeoutStartSec=0

Delegate=yes

KillMode=process

Restart=on-failure

StartLimitBurst=3

StartLimitInterval=60s

[Install]

WantedBy=multi-user.target

　　重启docker和flanneld

systemctl daemon-reload

ystemctl restart docker

ystemctl restart flanneld

　　检查是否生效

# ps -ef|grep docker

root 15817 1 2 09:52 ? 00:00:00 /usr/bin/dockerd --bip=172.17.82.1/24 --ip-masq=false --mtu=1450

root 15824 15817 0 09:52 ? 00:00:00 containerd --config /var/run/docker/containerd/containerd.toml --log-level info

　　确保flannel和docker0在同一网段

# ip addr

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000

link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

inet 127.0.0.1/8 scope host lo

valid_lft forever preferred_lft forever

2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000

link/ether 00:50:56:b7:26:a4 brd ff:ff:ff:ff:ff:ff

inet 192.168.1.65/24 brd 192.168.1.255 scope global noprefixroute eth0

valid_lft forever preferred_lft forever

3: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default

link/ether 1e:87:55:50:7f:31 brd ff:ff:ff:ff:ff:ff

inet 172.17.82.0/32 scope global flannel.1

valid_lft forever preferred_lft forever

4: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default

link/ether 02:42:c0:26:ad:3d brd ff:ff:ff:ff:ff:ff

inet 172.17.82.1/24 brd 172.17.82.255 scope global docker0

valid_lft forever preferred_lft forever

　　同样的操作在node02 192.168.1.66操作一遍

　　在node2上查看ip

# ip addr

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000

link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

inet 127.0.0.1/8 scope host lo

valid_lft forever preferred_lft forever

2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000

link/ether 00:50:56:b7:bf:2f brd ff:ff:ff:ff:ff:ff

inet 192.168.1.66/24 brd 192.168.1.255 scope global noprefixroute eth0

valid_lft forever preferred_lft forever

3: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default

link/ether de:df:37:b7:be:5c brd ff:ff:ff:ff:ff:ff

inet 172.17.30.0/32 scope global flannel.1

valid_lft forever preferred_lft forever

4: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default

link/ether 02:42:38:91:f2:c4 brd ff:ff:ff:ff:ff:ff

inet 172.17.30.1/24 brd 172.17.30.255 scope global docker0

valid_lft forever preferred_lft forever

　　测试不同node节点互通

　　如果能通说明Flannel部署成功。如果不通检查下日志：journalctl -u flannel

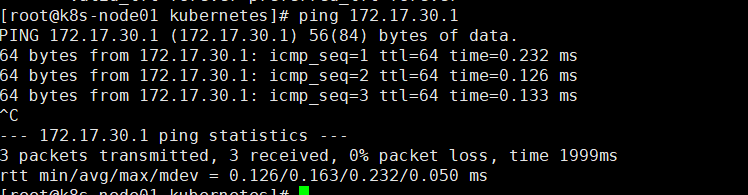

　　两个node启动一个容器ping测试

1	`docker run` `-it busybox`

　　7.部署Master组件

　　在部署Kubernetes之前一定要确保etcd、flannel、docker是正常工作的，否则先解决问题再继续。

　　在master01 192.168.1.63上操作

　　创建CA证书

cd /root/k8s/k8s-cert

# cat ca-config.json

{

"signing": {

"default": {

"expiry": "87600h"

},

"profiles": {

"kubernetes": {

"expiry": "87600h",

"usages": [

"signing",

"key encipherment",

"server auth",

"client auth"

]

}

# cat ca-csr.json

{

"CN": "kubernetes",

"key": {

"algo": "rsa",

"size": 2048

},

"names": [

{

"C": "CN",

"L": "Beijing",

"ST": "Beijing",

"O": "k8s",

"OU": "System"

}

]

}

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

　　生成以下两个证书

　　创建apiserver证书

# cat server-csr.json

{

"CN": "kubernetes",

"hosts": [

"10.0.0.1",

"127.0.0.1",

"192.168.1.60",

"192.168.1.61",

"192.168.1.62",

"192.168.1.63",

"192.168.1.64",

"192.168.1.65",

"192.168.1.66",

"kubernetes",

"kubernetes.default",

"kubernetes.default.svc",

"kubernetes.default.svc.cluster",

"kubernetes.default.svc.cluster.local"

],

"key": {

"algo": "rsa",

"size": 2048

},

"names": [

{

"C": "CN",

"L": "BeiJing",

"ST": "BeiJing",

"O": "k8s",

"OU": "System"

}

]

}

　　为了不遗漏这里把所有ip都填上

1	`cfssl gencert` `-ca=ca.pem` `-ca-key=ca-key.pem` `-config=ca-config.json` `-profile=kubernetes server-csr.json \| cfssljson` `-bare server`

　　生成以下两个证书

　　创建kube-proxy证书

# cat kube-proxy-csr.json

{

"CN": "system:kube-proxy",

"hosts": [],

"key": {

"algo": "rsa",

"size": 2048

},

"names": [

{

"C": "CN",

"L": "BeiJing",

"ST": "BeiJing",

"O": "k8s",

"OU": "System"

}

]

}

1	`cfssl gencert` `-ca=ca.pem` `-ca-key=ca-key.pem` `-config=ca-config.json` `-profile=kubernetes kube-proxy-csr.json \| cfssljson` `-bare kube-proxy`

　　生成以下证书

　　最终生成6个证书

1 2	`# ls *.pem` `ca-key.pem ca.pem kube-proxy-key.pem kube-proxy.pem server-key.pem server.pem`

　　部署apiserver组件

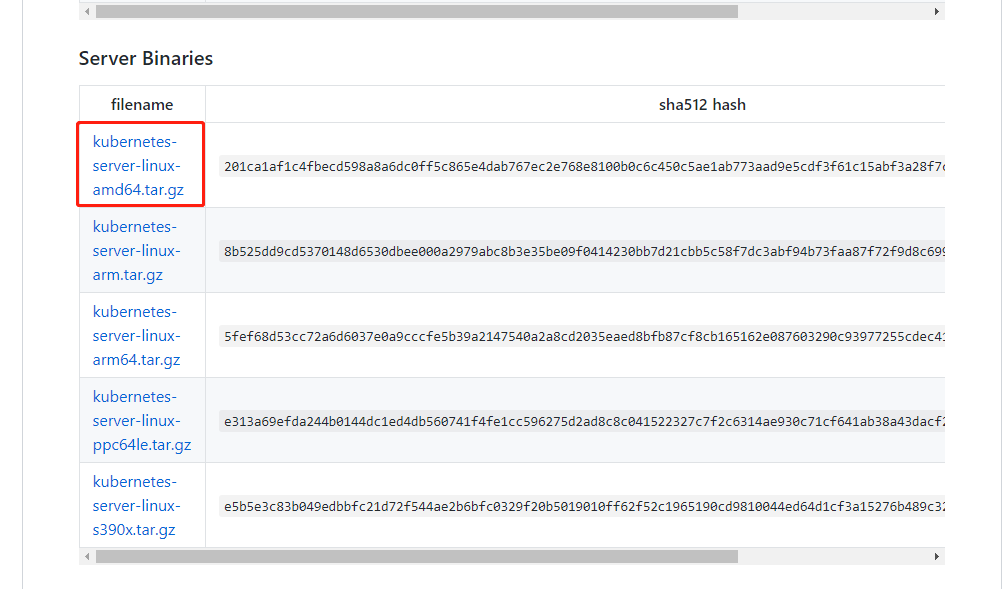

　　下载二进制包下载地址https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.13.md#server-binaries-8

　　本次下载v1.13.4包

　　创建Kubernetes目录

1	`mkdir` `/opt/kubernetes/{bin,cfg,ssl,logs}` `-p`

　　解压并且把可执行文件放置在对应目录

tar -xf kubernetes-server-linux-amd64.tar.gz

cd kubernetes/server/bin

/usr/bin/cp kube-apiserver kube-scheduler kube-controller-manager kubectl /opt/kubernetes/bin/

　　创建token文件

export BOOTSTRAP_TOKEN=$(head -c 16 /dev/urandom | od -An -t x | tr -d ' ')

cat > token.csv <<EOF

${BOOTSTRAP_TOKEN},kubelet-bootstrap,10001,"system:kubelet-bootstrap"

EOF

cp token.csv /opt/kubernetes/cfg/

　　token文件内容如下

1 2	`# cat /opt/kubernetes/cfg/token.csv` `9015cf068f594553a06fc70e4367c3a4,kubelet-bootstrap,10001,"system:kubelet-bootstrap"`

　　第一列：随机字符串，自己可生成

　　第二列：用户名

　　第三列：UID　

　　第四列：用户组

　　创建apiserver配置文件

# cat /opt/kubernetes/cfg/kube-apiserver

KUBE_APISERVER_OPTS="--logtostderr=false \

--log-dir=/opt/kubernetes/logs \

--v=4 \

--etcd-servers=https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379 \

--insecure-bind-address=127.0.0.1 \

--bind-address=192.168.1.63 \

--insecure-port=8080 \

--secure-port=6443 \

--advertise-address=192.168.1.63 \

--allow-privileged=true \

--service-cluster-ip-range=10.0.0.0/24 \

#--admission-control=NamespaceLifecycle,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota,NodeRestriction --authorization-mode=RBAC,Node \

--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \

--kubelet-https=true \

--enable-bootstrap-token-auth \

--token-auth-file=/opt/kubernetes/cfg/token.csv \

--service-node-port-range=30000-50000 \

--tls-cert-file=/opt/kubernetes/ssl/server.pem \

--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \

--client-ca-file=/opt/kubernetes/ssl/ca.pem \

--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \

--etcd-cafile=/opt/etcd/ssl/ca.pem \

--etcd-certfile=/opt/etcd/ssl/server.pem \

--etcd-keyfile=/opt/etcd/ssl/server-key.pem"

　　配置好前面生成的证书，确保能连接etcd

　　参数说明

--logtostderr 启用日志

---v 日志等级

--etcd-servers etcd集群地址

--bind-address 监听地址

--secure-port https安全端口

--advertise-address 集群通告地址

--allow-privileged 启用授权

--service-cluster-ip-range Service虚拟IP地址段

--enable-admission-plugins 准入控制模块

--authorization-mode 认证授权，启用RBAC授权和节点自管理

--enable-bootstrap-token-auth 启用TLS bootstrap功能，后面会讲到

--token-auth-file token文件

--service-node-port-range Service Node类型默认分配端口范围

　　配置system管理apiserver

# cat /usr/lib/systemd/system/kube-apiserver.service

[Unit]

Description=Kubernetes API Server

Documentation=https://github.com/kubernetes/kubernetes

[Service]

EnvironmentFile=-/opt/kubernetes/cfg/kube-apiserver

ExecStart=/opt/kubernetes/bin/kube-apiserver $KUBE_APISERVER_OPTS

Restart=on-failure

[Install]

WantedBy=multi-user.target

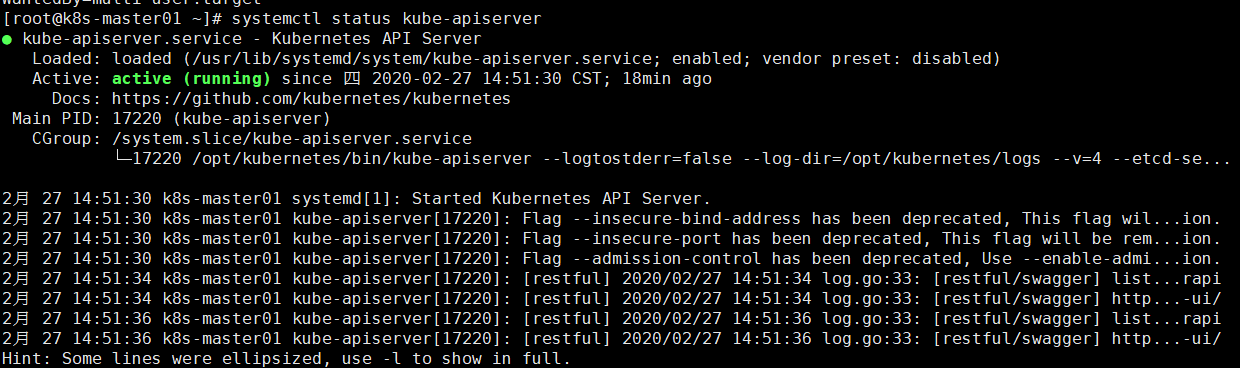

　　启动

systemctl daemon-reload

systemctl enable kube-apiserver

systemctl restart kube-apiserver

　　部署scheduler组件

　　创建schduler配置文件

# cat /opt/kubernetes/cfg/kube-scheduler

KUBE_SCHEDULER_OPTS="--logtostderr=true \

--v=4 \

--master=127.0.0.1:8080 \

--leader-elect"

　　参数说明

1 2	`--master 连接本地apiserver` `--leader-elect 当该组件启动多个时，自动选举（HA）`

　　创建system管理schduler组件

# cat /usr/lib/systemd/system/kube-scheduler.service

[Unit]

Description=Kubernetes Scheduler

Documentation=https://github.com/kubernetes/kubernetes

[Service]

EnvironmentFile=-/opt/kubernetes/cfg/kube-scheduler

ExecStart=/opt/kubernetes/bin/kube-scheduler $KUBE_SCHEDULER_OPTS

Restart=on-failure

[Install]

WantedBy=multi-user.target

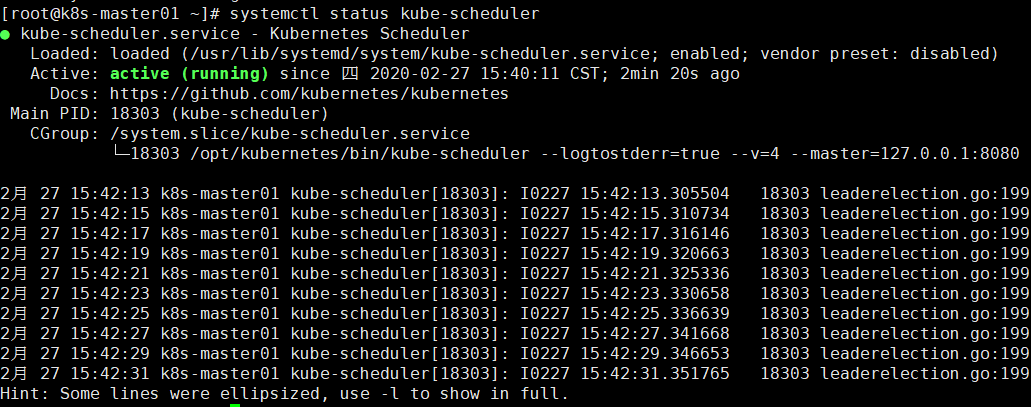

　　启动

# systemctl daemon-reload

# systemctl enable kube-scheduler

# systemctl restart kube-scheduler

　　部署controllers-manager组件

　　创建controllers-manager配置文件

# cat /opt/kubernetes/cfg/kube-controller-manager

KUBE_CONTROLLER_MANAGER_OPTS="--logtostderr=true \

--v=4 \

--master=127.0.0.1:8080 \

--leader-elect=true \

--address=127.0.0.1 \

--service-cluster-ip-range=10.0.0.0/24 \

#--service-cluster-ip-range=172.17.0.0/16 \

--cluster-name=kubernetes \

--cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \

--cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem \

--root-ca-file=/opt/kubernetes/ssl/ca.pem \

--service-account-private-key-file=/opt/kubernetes/ssl/ca-key.pem \

--experimental-cluster-signing-duration=87600h0m0s"

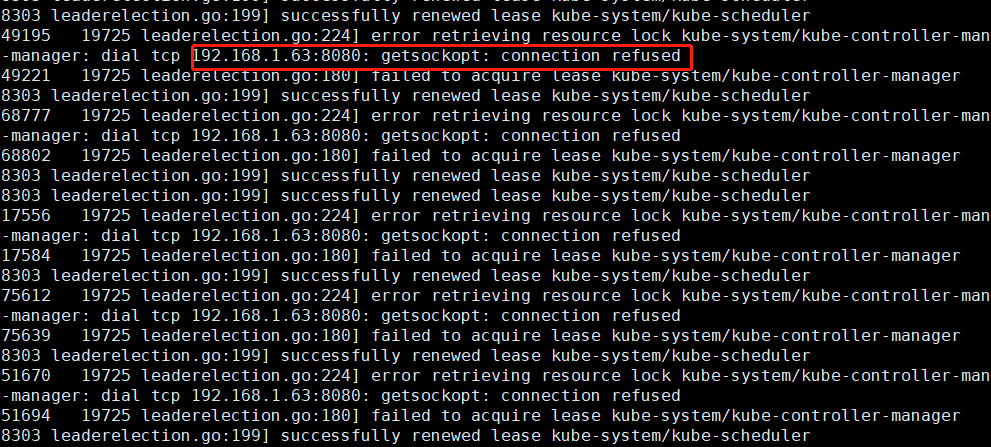

　　PS：这里master配置必须是127.0.0.1而不能是192.168.1.63否则会出现连接拒绝的报错信息

　　system管理controllers-manager

# cat /usr/lib/systemd/system/kube-controller-manager.service

[Unit]

Description=Kubernetes Controller Manager

Documentation=https://github.com/kubernetes/kubernetes

[Service]

EnvironmentFile=-/opt/kubernetes/cfg/kube-controller-manager

ExecStart=/opt/kubernetes/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS

Restart=on-failure

[Install]

WantedBy=multi-user.target

　　启动

# systemctl daemon-reload

# systemctl enable kube-controller-manager

# systemctl restart kube-controller-manager

　　所有组件都已经启动成功，通过kubectl工具查看当前集群组件状态：

/opt/kubernetes/bin/kubectl get cs

NAME STATUS MESSAGE ERROR

controller-manager Healthy ok

scheduler Healthy ok

etcd-1 Healthy {"health":"true"}

etcd-2 Healthy {"health":"true"}

etcd-0 Healthy {"health":"true"}

　　8.部署Node组件

　　Master apiserver启用TLS认证后，Node节点kubelet组件想要加入集群，必须使用CA签发的有效证书才能与apiserver通信，当Node节点很多时，签署证书是一件很繁琐的事情，因此有了TLS Bootstrapping机制，kubelet会以一个低权限用户自动向apiserver申请证书，kubelet的证书由apiserver动态签署。

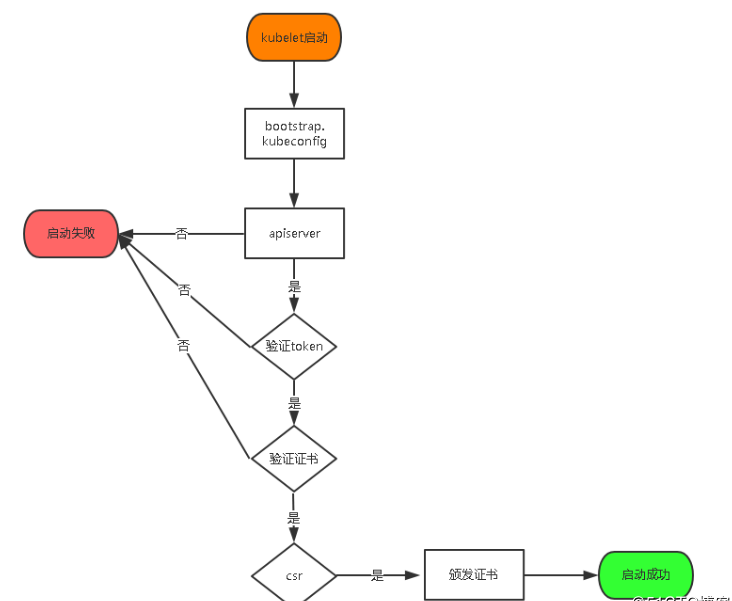

认证大致工作流程如图所示：

　　在master01上操作，将kubelet-bootstrap用户绑定到系统集群角色

1	`kubectl create clusterrolebinding kubelet-bootstrap` `--clusterrole=system:node-bootstrapper` `--user=kubelet-bootstrap`

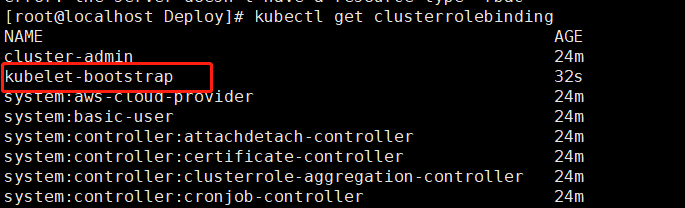

　　查看

1	`kubectl get clusterrolebinding`

　　创建kubeconfig文件

　　在kubernetes证书目录/opt/kubernetes/ssl下执行以下命令生成kubeconfig文件

#创建kubelet bootstrapping kubeconfig

#该token需要与配置文件中/opt/kubernetes/cfg/token.csv一致

BOOTSTRAP_TOKEN=9015cf068f594553a06fc70e4367c3a4

KUBE_APISERVER="https://192.168.1.63:6443"

# 设置集群参数

kubectl config set-cluster kubernetes \

--certificate-authority=./ca.pem \

--embed-certs=true \

--server=${KUBE_APISERVER} \

--kubeconfig=bootstrap.kubeconfig

# 设置客户端认证参数

kubectl config set-credentials kubelet-bootstrap \

--token=${BOOTSTRAP_TOKEN} \

--kubeconfig=bootstrap.kubeconfig

# 设置上下文参数

kubectl config set-context default \

--cluster=kubernetes \

--user=kubelet-bootstrap \

--kubeconfig=bootstrap.kubeconfig

# 设置默认上下文

kubectl config use-context default --kubeconfig=bootstrap.kubeconfig

#----------------------

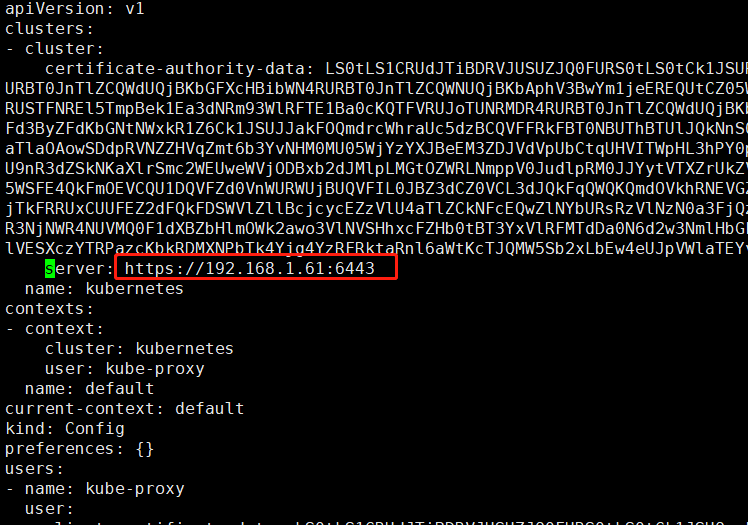

# 创建kube-proxy kubeconfig文件

kubectl config set-cluster kubernetes \

--certificate-authority=./ca.pem \

--embed-certs=true \

--server=${KUBE_APISERVER} \

--kubeconfig=kube-proxy.kubeconfig

kubectl config set-credentials kube-proxy \

--client-certificate=./kube-proxy.pem \

--client-key=./kube-proxy-key.pem \

--embed-certs=true \

--kubeconfig=kube-proxy.kubeconfig

kubectl config set-context default \

--cluster=kubernetes \

--user=kube-proxy \

--kubeconfig=kube-proxy.kubeconfig

kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig

　　生成以下两个配置文件

　　将这两个文件拷贝至node的目录/opt/kubernetes/cfg下

　　在两个node192.168.1.65 192.168.1.66部署kubelet组件

　　将前面下载的二进制包中的kubelet和kube-proxy拷贝到/opt/kubernetes/bin目录下

　　创建kubelet配置文件

# cat /opt/kubernetes/cfg/kubelet

KUBELET_OPTS="--logtostderr=true \

--v=4 \

--hostname-override=192.168.1.65 \

--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \

--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \

--config=/opt/kubernetes/cfg/kubelet.config \

--cert-dir=/opt/kubernetes/ssl \

--pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0"

　　参数说明

--hostname-override 在集群中显示的主机名

--kubeconfig 指定kubeconfig文件位置，会自动生成

--bootstrap-kubeconfig 指定刚才生成的bootstrap.kubeconfig文件

--cert-dir 颁发证书存放位置

--pod-infra-container-image 管理Pod网络的镜像

　　其中/opt/kubernetes/cfg/kubelet.config配置文件如下：

kind: KubeletConfiguration

apiVersion: kubelet.config.k8s.io/v1beta1

address: 192.168.1.65

port: 10250

readOnlyPort: 10255

cgroupDriver: cgroupfs

clusterDNS: ["10.0.0.2"]

clusterDomain: cluster.local.

failSwapOn: false

authentication:

anonymous:

enabled: true

　　system管理kubelet

# cat /usr/lib/systemd/system/kubelet.service

[Unit]

Description=Kubernetes Kubelet

After=docker.service

Requires=docker.service

[Service]

EnvironmentFile=/opt/kubernetes/cfg/kubelet

ExecStart=/opt/kubernetes/bin/kubelet $KUBELET_OPTS

Restart=on-failure

KillMode=process

[Install]

WantedBy=multi-user.target

　　启动

# systemctl daemon-reload

# systemctl enable kubelet

# systemctl restart kubelet

　　启动后会在目录下自动生成证书

# pwd

/opt/kubernetes/ssl

[root@k8s-node01 ssl]# ls

kubelet-client.key.tmp kubelet.crt kubelet.key

　　启动后没有加入到集群，需要在master手动添加

# kubectl get csr

NAME                                                   AGE       REQUESTOR           CONDITION

node-csr-hL-XazsjjMvWzkrdg7ePgmu9IRd5SBIFtqLkvqwxEc4 41m kubelet-bootstrap Approved,Issued

node-csr-uM16cNRQFg5S6UHeiMFprfO3dNBQp5udk74CvbSqv5E 48m kubelet-bootstrap Approved,Issued

#kubectl certificate approve node-csr-hL-XazsjjMvWzkrdg7ePgmu9IRd5SBIFtqLkvqwxEc4

　　添加完查看node是否加入集群

# kubectl get node

NAME STATUS ROLES AGE VERSION

192.168.1.65 Ready <none> 22m v1.12.10

192.168.1.66 Ready <none> 22m v1.12.10

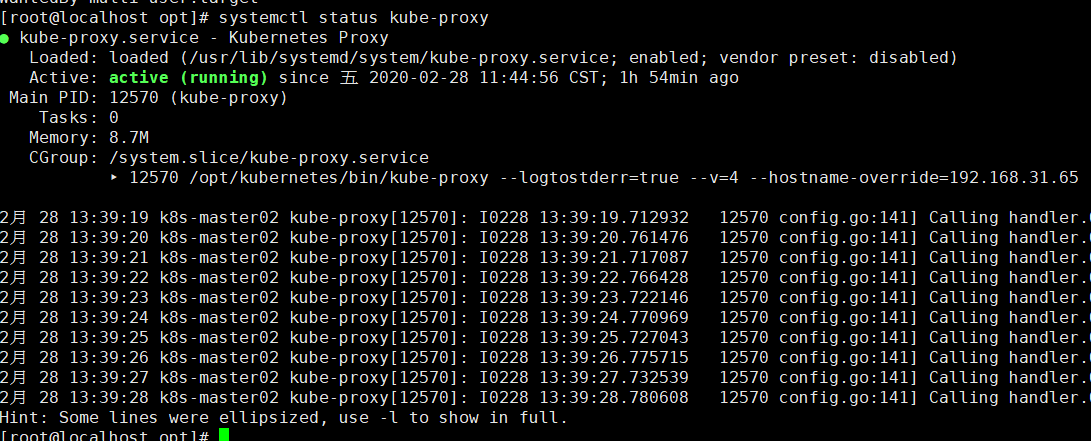

　　部署kube-proxy组件

　　创建kube-proxy配置文件

# cat /opt/kubernetes/cfg/kube-proxy

KUBE_PROXY_OPTS="--logtostderr=true \

--v=4 \

--hostname-override=192.168.1.65 \

--cluster-cidr=10.0.0.0/24 \

--kubeconfig=/opt/kubernetes/cfg/kube-proxy.kubeconfig"

　　system管理kube-proxy

# cat /usr/lib/systemd/system/kube-proxy.service

[Unit]

Description=Kubernetes Proxy

After=network.target

[Service]

EnvironmentFile=-/opt/kubernetes/cfg/kube-proxy

ExecStart=/opt/kubernetes/bin/kube-proxy $KUBE_PROXY_OPTS

Restart=on-failure

[Install]

WantedBy=multi-user.target

　　启动

# systemctl daemon-reload

# systemctl enable kube-proxy

# systemctl restart kube-proxy

　　node2 192.168.1.66上面部署方式一样

　　集群部署完成，在master 192.168.1.63查看集群状态

# kubectl get node

NAME STATUS ROLES AGE VERSION

192.168.1.65 Ready <none> 122m v1.13.4

192.168.1.66 Ready <none> 118m v1.13.4

[root@localhost ~]# kubectl get cs

NAME STATUS MESSAGE ERROR

scheduler Healthy ok

controller-manager Healthy ok

etcd-0 Healthy {"health":"true"}

etcd-2 Healthy {"health":"true"}

etcd-1 Healthy {"health":"true"}

　　9.部署一个测试示例

　　Kubernetes集群部署完毕，在master上面部署一个nginx测试

#创建一个deployment名称为nginx使用镜像为nginx

kubectl create deployment nginx --image=nginx

#创建一个service对应的deloyment为nginx 集群内部端口为80对外使用NodePort暴露端口

kubectl expose deployment nginx --port=80 --type=NodePort

#查看pod和svc

kubectl get pod,svc

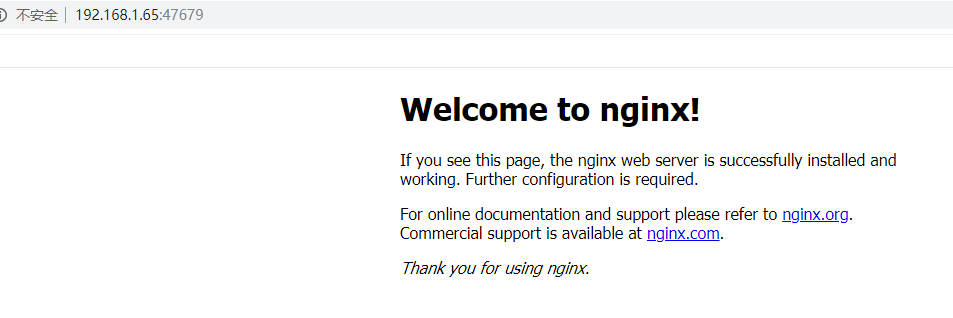

　　通过web访问访问方式为node ip加对应端口192.168.1.65:47679

　　10.部署Web UI(Dashboard)

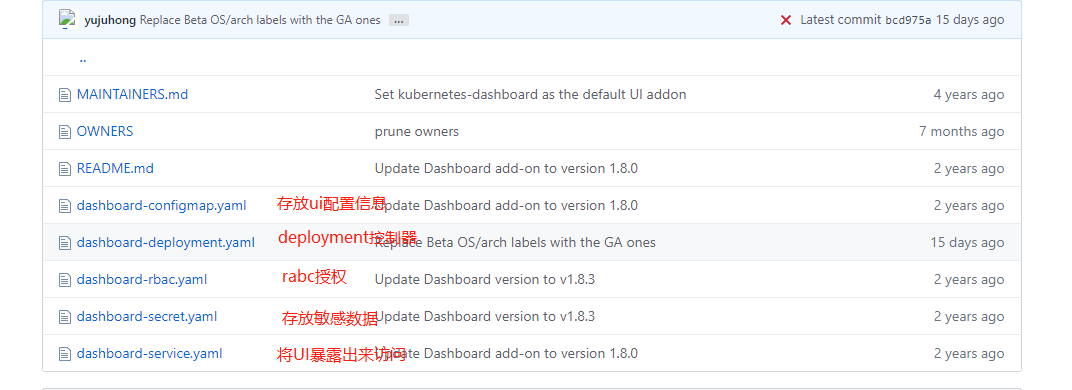

　　部署UI的配置文件可以在以下地址下载https://github.com/kubernetes/kubernetes/tree/master/cluster/addons/dashboard

　　下载部署配置文件

# cat dashboard-configmap.yaml

apiVersion: v1

kind: ConfigMap

metadata:

labels:

k8s-app: kubernetes-dashboard

# Allows editing resource and makes sure it is created first.

addonmanager.kubernetes.io/mode: EnsureExists

name: kubernetes-dashboard-settings

namespace: kube-system

# cat dashboard-rbac.yaml

kind: Role

apiVersion: rbac.authorization.k8s.io/v1

metadata:

labels:

k8s-app: kubernetes-dashboard

addonmanager.kubernetes.io/mode: Reconcile

name: kubernetes-dashboard-minimal

namespace: kube-system

rules:

# Allow Dashboard to get, update and delete Dashboard exclusive secrets.

- apiGroups: [""]

resources: ["secrets"]

resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs"]

verbs: ["get", "update", "delete"]

# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.

- apiGroups: [""]

resources: ["configmaps"]

resourceNames: ["kubernetes-dashboard-settings"]

verbs: ["get", "update"]

# Allow Dashboard to get metrics from heapster.

- apiGroups: [""]

resources: ["services"]

resourceNames: ["heapster"]

verbs: ["proxy"]

- apiGroups: [""]

resources: ["services/proxy"]

resourceNames: ["heapster", "http:heapster:", "https:heapster:"]

verbs: ["get"]

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

name: kubernetes-dashboard-minimal

namespace: kube-system

labels:

k8s-app: kubernetes-dashboard

addonmanager.kubernetes.io/mode: Reconcile

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: Role

name: kubernetes-dashboard-minimal

subjects:

- kind: ServiceAccount

name: kubernetes-dashboard

namespace: kube-system

# cat dashboard-secret.yaml

apiVersion: v1

kind: Secret

metadata:

labels:

k8s-app: kubernetes-dashboard

# Allows editing resource and makes sure it is created first.

addonmanager.kubernetes.io/mode: EnsureExists

name: kubernetes-dashboard-certs

namespace: kube-system

type: Opaque

---

apiVersion: v1

kind: Secret

metadata:

labels:

k8s-app: kubernetes-dashboard

# Allows editing resource and makes sure it is created first.

addonmanager.kubernetes.io/mode: EnsureExists

name: kubernetes-dashboard-key-holder

namespace: kube-system

type: Opaque

　　修改镜像地址为国内地址

# cat dashboard-deployment.yaml

apiVersion: v1

kind: ServiceAccount

metadata:

labels:

k8s-app: kubernetes-dashboard

addonmanager.kubernetes.io/mode: Reconcile

name: kubernetes-dashboard

namespace: kube-system

---

apiVersion: apps/v1

kind: Deployment

metadata:

name: kubernetes-dashboard

namespace: kube-system

labels:

k8s-app: kubernetes-dashboard

addonmanager.kubernetes.io/mode: Reconcile

spec:

selector:

matchLabels:

k8s-app: kubernetes-dashboard

template:

metadata:

labels:

k8s-app: kubernetes-dashboard

annotations:

seccomp.security.alpha.kubernetes.io/pod: 'docker/default'

spec:

priorityClassName: system-cluster-critical

containers:

- name: kubernetes-dashboard

image: lizhenliang/kubernetes-dashboard-amd64:v1.10.1

#image: huanwei/kubernetes-dashboard-amd64

resources:

limits:

cpu: 100m

memory: 300Mi

requests:

cpu: 50m

memory: 100Mi

ports:

- containerPort: 8443

protocol: TCP

args:

# PLATFORM-SPECIFIC ARGS HERE

- --auto-generate-certificates

volumeMounts:

- name: kubernetes-dashboard-certs

mountPath: /certs

- name: tmp-volume

mountPath: /tmp

livenessProbe:

httpGet:

scheme: HTTPS

path: /

port: 8443

initialDelaySeconds: 30

timeoutSeconds: 30

volumes:

- name: kubernetes-dashboard-certs

secret:

secretName: kubernetes-dashboard-certs

- name: tmp-volume

emptyDir: {}

serviceAccountName: kubernetes-dashboard

#nodeSelector:

# "kubernetes.io/os": linux

tolerations:

- key: "CriticalAddonsOnly"

operator: "Exists"

　　设置NodePort端口为3001

# cat dashboard-service.yaml

apiVersion: v1

kind: Service

metadata:

name: kubernetes-dashboard

namespace: kube-system

labels:

k8s-app: kubernetes-dashboard

kubernetes.io/cluster-service: "true"

addonmanager.kubernetes.io/mode: Reconcile

spec:

selector:

k8s-app: kubernetes-dashboard

type: NodePort

ports:

- port: 443

targetPort: 8443

nodePort: 30001

　　应用本次一次性应用目录下所有配置文件

# kubectl apply -f .

configmap/kubernetes-dashboard-settings created

serviceaccount/kubernetes-dashboard created

deployment.apps/kubernetes-dashboard created

role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

secret/kubernetes-dashboard-certs created

secret/kubernetes-dashboard-key-holder created

service/kubernetes-dashboard created

　　查看

# kubectl get pod,svc -n kube-system

NAME READY STATUS RESTARTS AGE

pod/kubernetes-dashboard-88ffb5bfc-7sjw4 1/1 Running 0 2m9s

NAME                           TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE

service/kubernetes-dashboard NodePort 10.0.0.114 <none> 443:30001/TCP 6m50s

　　创建面向应用的用户

1	`kubectl create serviceaccount dashboard-admin -n kube-system`

　　集群角色绑定，设置最高的管理员权限

1	`kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin`

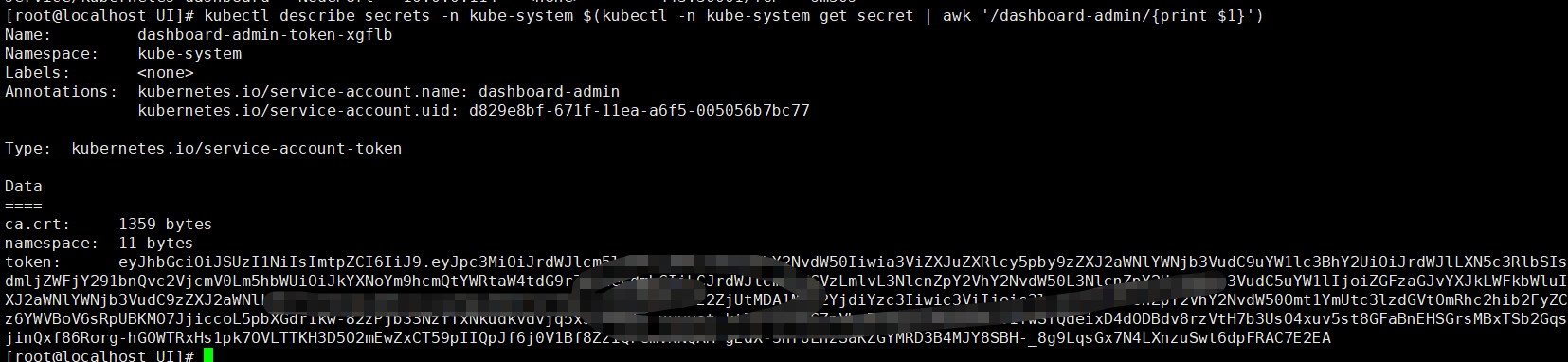

　　获取登录的token令牌

1	`kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret \|` `awk` `'/dashboard-admin/{print $1}')`

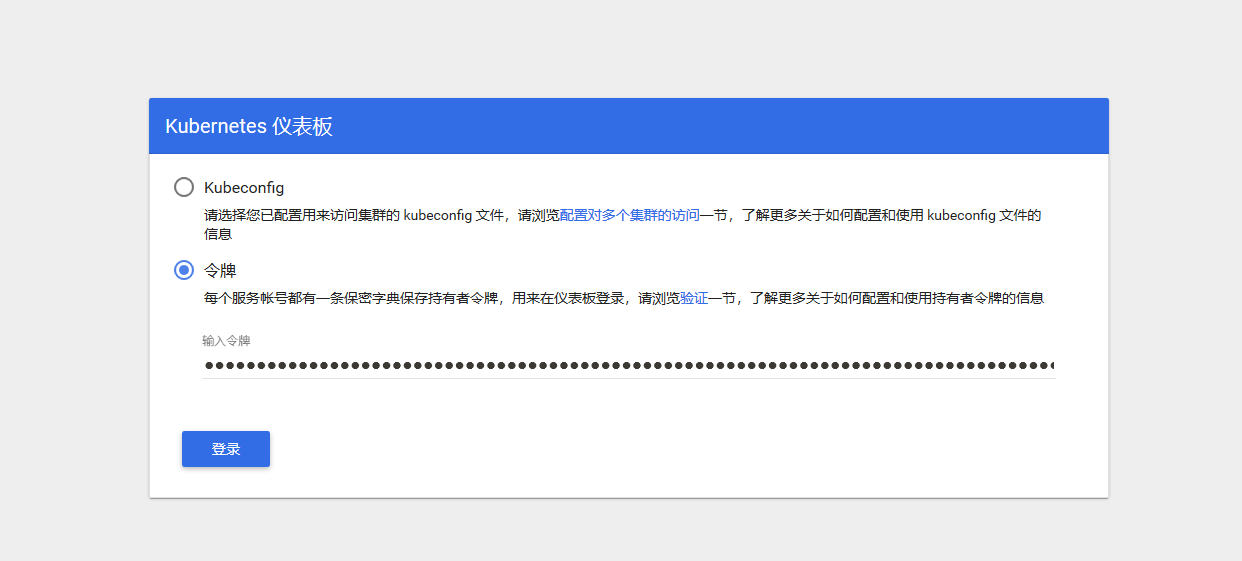

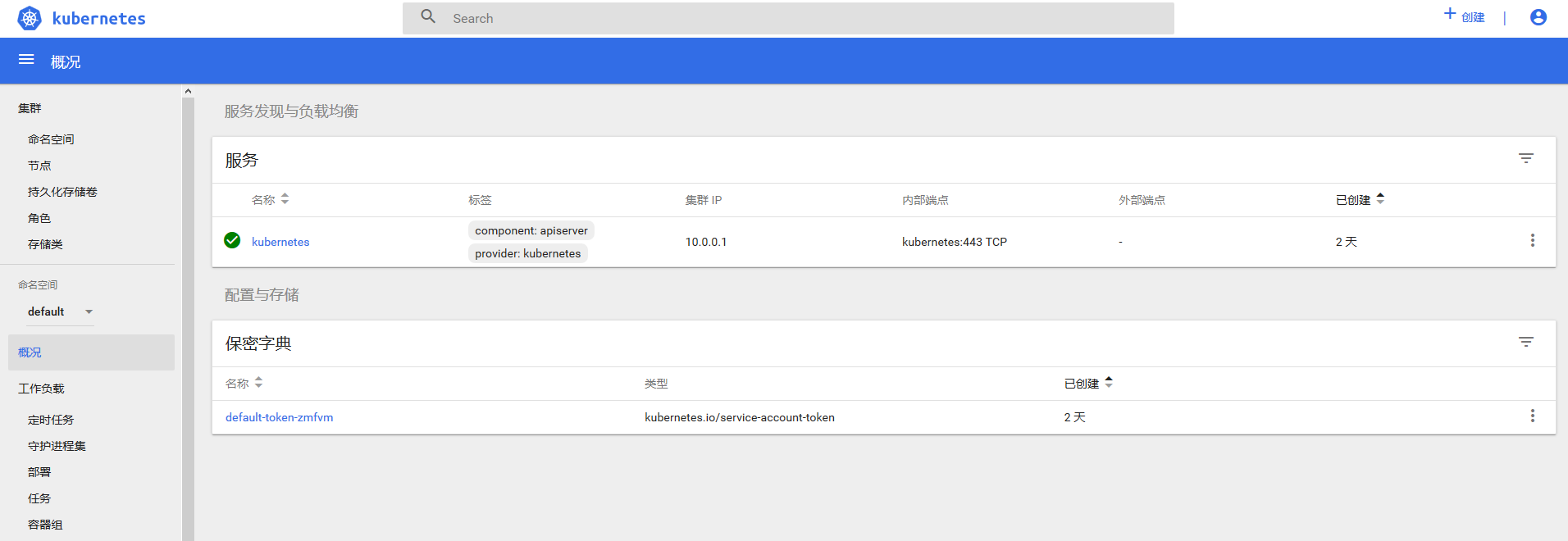

　　web页面登录https://nodeip:30001需要使用https登录输入刚刚获取的token

　　11.部署多master

　　　学习及测试部署单master即可满足需要，生产需要部署多master

　　从master01 192.168.1.63拷贝配置文件至master02

scp -r /opt/kubernetes/ root@192.168.1.64:/opt/

scp /usr/lib/systemd/system/kube-apiserver.service root@192.168.1.64:/usr/lib/systemd/system

scp /usr/lib/systemd/system/kube-controller-manager.service root@192.168.1.64:/usr/lib/systemd/system

scp /usr/lib/systemd/system/kube-scheduler.service root@192.168.1.64:/usr/lib/systemd/system

#etcd文件也需要拷贝，需要etcd的ssl证书

scp -r /opt/etcd/ root@192.168.1.64:/opt/

　　修改配置文件

# cat kube-apiserver

KUBE_APISERVER_OPTS="--logtostderr=false \

--log-dir=/opt/kubernetes/logs \

--v=4 \

--etcd-servers=https://192.168.1.63:2379,https://192.168.1.65:2379,https://192.168.1.66:2379 \

--insecure-bind-address=127.0.0.1 \

--bind-address=192.168.1.64 \

--insecure-port=8080 \

--secure-port=6443 \

--advertise-address=192.168.1.64 \

--allow-privileged=true \

--service-cluster-ip-range=10.10.10.0/24 \

--admission-control=NamespaceLifecycle,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota,NodeRestriction --authorization-mode=RBAC,Node \

--kubelet-https=true \

--enable-bootstrap-token-auth \

--token-auth-file=/opt/kubernetes/cfg/token.csv \

--service-node-port-range=30000-50000 \

--tls-cert-file=/opt/kubernetes/ssl/server.pem \

--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \

--client-ca-file=/opt/kubernetes/ssl/ca.pem \

--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \

--etcd-cafile=/opt/etcd/ssl/ca.pem \

--etcd-certfile=/opt/etcd/ssl/server.pem \

--etcd-keyfile=/opt/etcd/ssl/server-key.pem"

　　需要修改--bind-address 和--advertise-address对应ip地址，其他配置文件使用本机ip 127.0.0.1无需修改

　　启动

systemctl status kube-apiserver

systemctl restart kube-controller-manager

systemctl restart kube-scheduler

systemctl enable kube-apiserver

systemctl enable kube-controller-manager

systemctl enable kube-scheduler

　　部署load balaner本次使用nginx

　　在192.168.1.61操作

　　yum安装nginx

1	`yum` `-y install nginx`

　　查看编译信息,默认包负载均衡参数--with-stream

　　四层负载均衡参考https://www.cnblogs.com/minseo/p/10288379.html

1	`nginx` `-V`

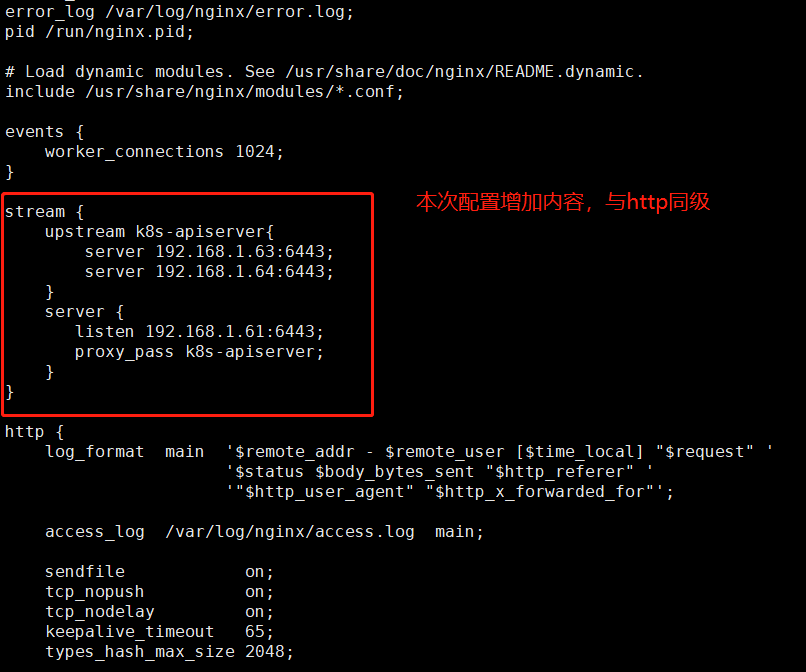

　　修改配置文件，增加四层负载均衡配置

100

101

# cat /etc/nginx/nginx.conf

# For more information on configuration, see:

# * Official English Documentation: http://nginx.org/en/docs/

# * Official Russian Documentation: http://nginx.org/ru/docs/

user nginx;

worker_processes auto;

error_log /var/log/nginx/error.log;

pid /run/nginx.pid;

# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.

include /usr/share/nginx/modules/*.conf;

events {

worker_connections 1024;

}

stream {

upstream k8s-apiserver{

server 192.168.1.63:6443;

server 192.168.1.64:6443;

}

server {

listen 192.168.1.61:6443;

proxy_pass k8s-apiserver;

}

http {

log_format main '$remote_addr - $remote_user [$time_local] "$request" '

'$status $body_bytes_sent "$http_referer" '

'"$http_user_agent" "$http_x_forwarded_for"';

access_log /var/log/nginx/access.log main;

sendfile on;

tcp_nopush on;

tcp_nodelay on;

keepalive_timeout 65;

types_hash_max_size 2048;

include /etc/nginx/mime.types;

default_type application/octet-stream;

# Load modular configuration files from the /etc/nginx/conf.d directory.

# See http://nginx.org/en/docs/ngx_core_module.html#include

# for more information.

include /etc/nginx/conf.d/*.conf;

server {

listen 80 default_server;

listen [::]:80 default_server;

server_name _;

root /usr/share/nginx/html;

# Load configuration files for the default server block.

include /etc/nginx/default.d/*.conf;

location / {

}

error_page 404 /404.html;

location = /40x.html {

}

error_page 500 502 503 504 /50x.html;

location = /50x.html {

}

# Settings for a TLS enabled server.

#

# server {

# listen 443 ssl http2 default_server;

# listen [::]:443 ssl http2 default_server;

# server_name _;

# root /usr/share/nginx/html;

#

# ssl_certificate "/etc/pki/nginx/server.crt";

# ssl_certificate_key "/etc/pki/nginx/private/server.key";

# ssl_session_cache shared:SSL:1m;

# ssl_session_timeout 10m;

# ssl_ciphers HIGH:!aNULL:!MD5;

# ssl_prefer_server_ciphers on;

#

# # Load configuration files for the default server block.

# include /etc/nginx/default.d/*.conf;

#

# location / {

# }

#

# error_page 404 /404.html;

# location = /40x.html {

# }

#

# error_page 500 502 503 504 /50x.html;

# location = /50x.html {

# }

}

　　重启使配置生效

1	`systemctl restart nginx`

　　查看

1 2	`# netstat -antp\|grep 6443` `tcp` `0` `0` `192.168.1.61:6443` `0.0.0.0:*` `LISTEN` `29759/nginx: master`

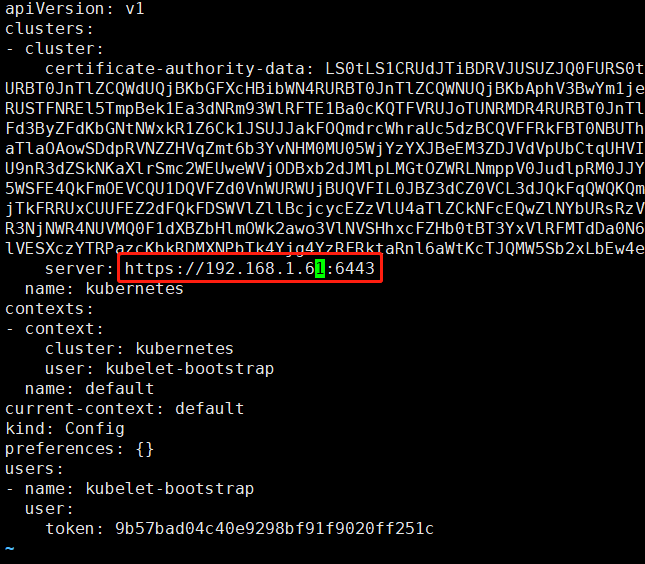

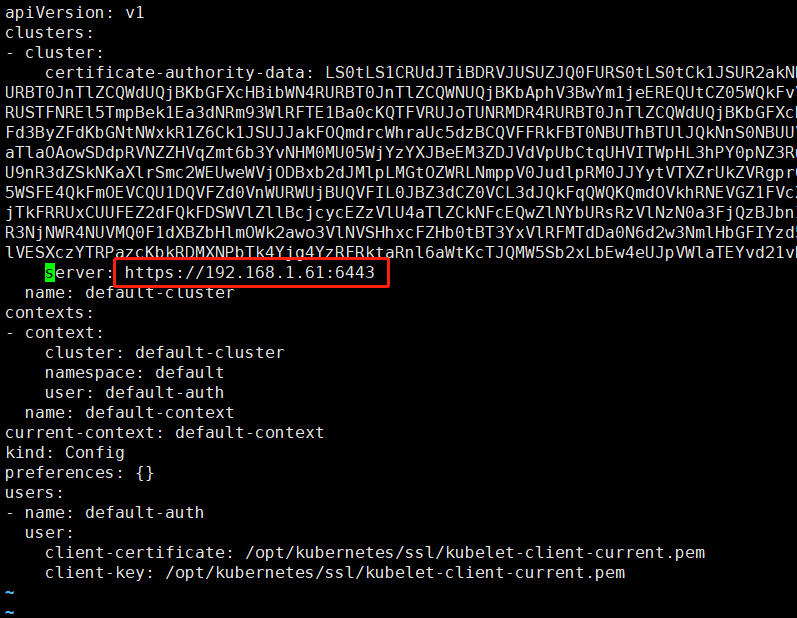

　　已经在nginx代理了两个后端服务器的6443端口，然后在node01 node02上面修改配置文件

1	`/opt/kubernetes/cfg/bootstrap.kubeconfig`

1	`/opt/kubernetes/cfg/kubelet.kubeconfig`

1	`/opt/kubernetes/cfg/kube-proxy.kubeconfig`

　　重启

1	`systemctl restart kubelet<br>systemctl restart kube-proxy`

　　node02 192.168.1.66进行同样修改操作后重启

　　为了查看负载均衡日志，修改nginx配置文件在stream增加两行记录日志

1 2	`log_format main` `"$remote_addr $upstream_addr - $time_local $status";` `access_log` `/var/log/nginx/k8s-access.log main;`

　　重启nginx

1	`systemctl restart nginx`

　　重启node的kubelet查看日志

1	`systemctl restart kubelet`

　　192.168.1.61 查看日志

# tail -f /var/log/nginx/k8s-access.log

192.168.1.65 192.168.1.63:6443 - 02/Mar/2020:11:36:46 +0800 200

192.168.1.65 192.168.1.64:6443 - 02/Mar/2020:11:36:46 +0800 200

　　在master上面查看node状态是正常的及代表负载均衡通信正常

1	`kubectl get node`

　　在负载均衡backup 192.168.1.62同样安装nginx修改配置文件，启动nginx

　　使用keepalived创建一个虚拟ip实现高可用 keepalived+nginx高可用参考https://www.cnblogs.com/minseo/p/9216499.html

　　在nginx master 192.168.1.61 和 nginx backup 192.168.1.62安装keepalived

1	`yum` `-y install keepalived`

　　nginx master修改配置文件

global_defs {

notification_email {

acassen@firewall.loc

failover@firewall.loc

sysadmin@firewall.loc

}

notification_email_from Alexandre.Cassen@firewall.loc

smtp_server 192.168.200.1

smtp_connect_timeout 30

router_id LVS_DEVEL

vrrp_skip_check_adv_addr

#vrrp_strict #需要注释否则VIP不通

vrrp_garp_interval 0

vrrp_gna_interval 0

}

vrrp_instance VI_1 {

state MASTER #master节点

interface eth0 #绑定的网口是eth0

virtual_router_id 51#ip 需要唯一主备一致

priority 150 #优先级，优先级越高越优秀占用VIP

advert_int 1

authentication {

auth_type PASS #认证

auth_pass 1111 #认证密码需要相同

}

virtual_ipaddress {

192.168.1.60/24 dev eth0 label eth0:1 #设置VIP

}

　　backup配置文件

global_defs {

notification_email {

acassen@firewall.loc

failover@firewall.loc

sysadmin@firewall.loc

}

notification_email_from Alexandre.Cassen@firewall.loc

smtp_server 192.168.200.1

smtp_connect_timeout 30

router_id LVS_DEVEL

vrrp_skip_check_adv_addr

#vrrp_strict

vrrp_garp_interval 0

vrrp_gna_interval 0

}

vrrp_instance VI_1 {

state BACKEND

interface eth0

virtual_router_id 52

priority 100

advert_int 1

authentication {

auth_type PASS

auth_pass 1111

}

virtual_ipaddress {

192.168.1.60/24 dev eth0 label eth0:1

}

　　有如下不同 state为BACKEND

　　优先级低于master

　　启动keepalived

1 2	`systemctl start keepalived` `systemctl enable keepalived`

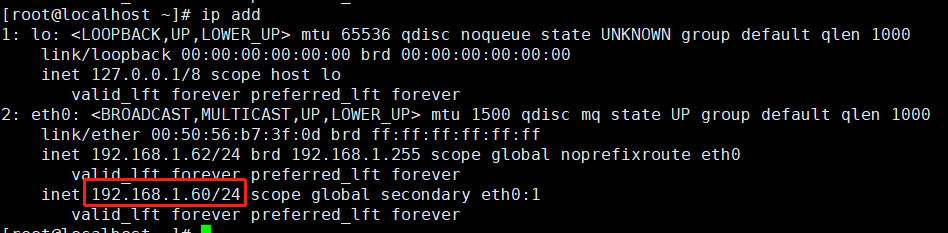

　　在master上面查看是否生成了VIP 192.168.1.60

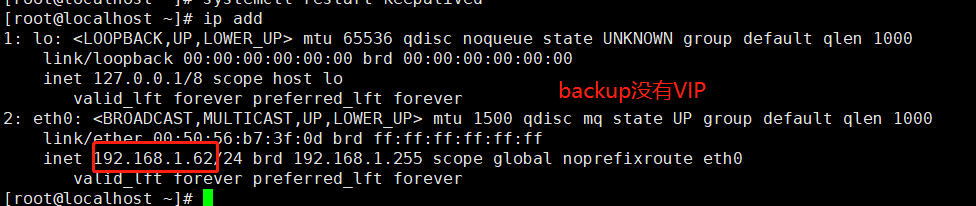

　　backup

　　停止master的keepalived VIP会跳至backup

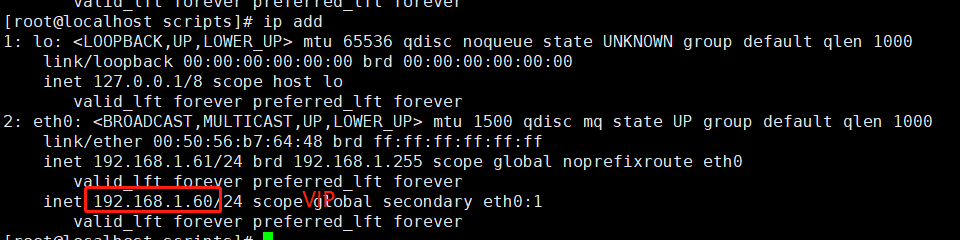

　　重启maste的keepalived则VIP会漂移至master，实现了故障迁移

　　如果是主的nginx出现故障，但是keepalived并不会把vip漂移，需要写脚本检测nginx宕则主动停止keepalived实现VIP漂移

1	`check_nginx.sh`

#!/bin/bash

while true

do

if [ `nmap 127.0.0.1 -p 80|sed -n "6p"|grep open|wc -l` -lt 1 ];then

systemctl stop keepalived

fi

sleep 5

done

　　后台运行并设置成开机启动即可实现如果是nginx出现故障也能实现VIP漂移

1	`sh check_nginx.sh &`

　　修改两个node192.168.1.65 192.168.1.66的配置文件

bootstrap.kubeconfig

kubelet.kubeconfig

kube-proxy.kubeconfig

　　把对应的IP修改成192.168.1.60重启kubelet kube-proxy即可

　　配置完毕在k8s-master01 192.168.1.63查看k8s集群状态

# kubectl get node

NAME STATUS ROLES AGE VERSION

192.168.1.65 Ready <none> 3d3h v1.13.4

192.168.1.66 Ready <none> 3d3h v1.13.4

　　k8s多master配置完毕

　　12.部署集群内部DNS解析服务(CoreDNS)

点赞 0 收藏(0)
